Description

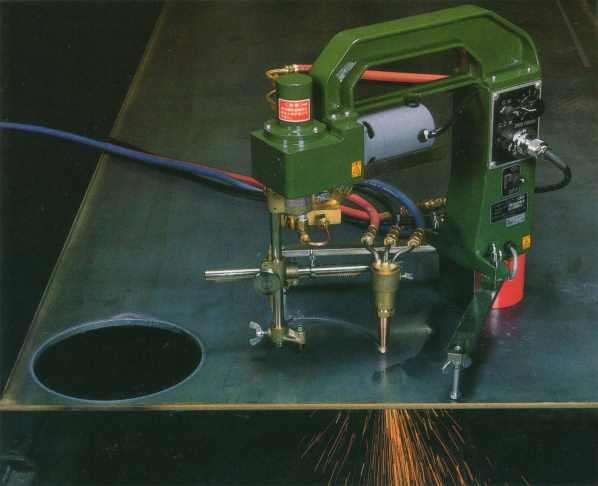

The Cir-Cut II is a portable automatic oxy-fuel circle cutting machine, designed to cuts or bevel circles in on flat or vertical surfaces, and any angles in between. High quality results done quickly and easily makes this Koike machine a must in your inventory for circle cutting.
Features
- Oxy-fuel circle cutting machine
Bevel or straight cut circles or holes. - Rotating gas manifold
Tangle-free hoses for ease of use. - Electro Magnet
Holds the machine to surface, enables vertical surface cutting. - Excellent cutting capacity
Cutting diameter Ø 40 - 200 mm, bevelling angle 0˚ - 45˚ - Lightweight and compact
11.3kg compact body with a large lifting handle makes the machine extremely portable. - Centering pin
Accurate and easy positioning of the machine.
Scope of delivery
- Machine body with torch set
- Centering pin
- Cutting nozzles (102HC or 106HC, size #0, 1, 2)
- Power cable
- Standard tool set
- Operation manual
Downloads
Contact us
Technical specifications
Cir-Cut II
Cutting thickness | 5 - 30 mm |
Cutting diameter | Ø 40 - 200 mm |
Torch rotation speed | 0.6 - 6.0 rpm |
Bevel angle | 0 ~ 45º |
Machine securing | Electromagnet (300kg) |
Input power | AC 110V |
Dimension | L410 x W450 x H395 mm |
Weight | 11.3 kg |
